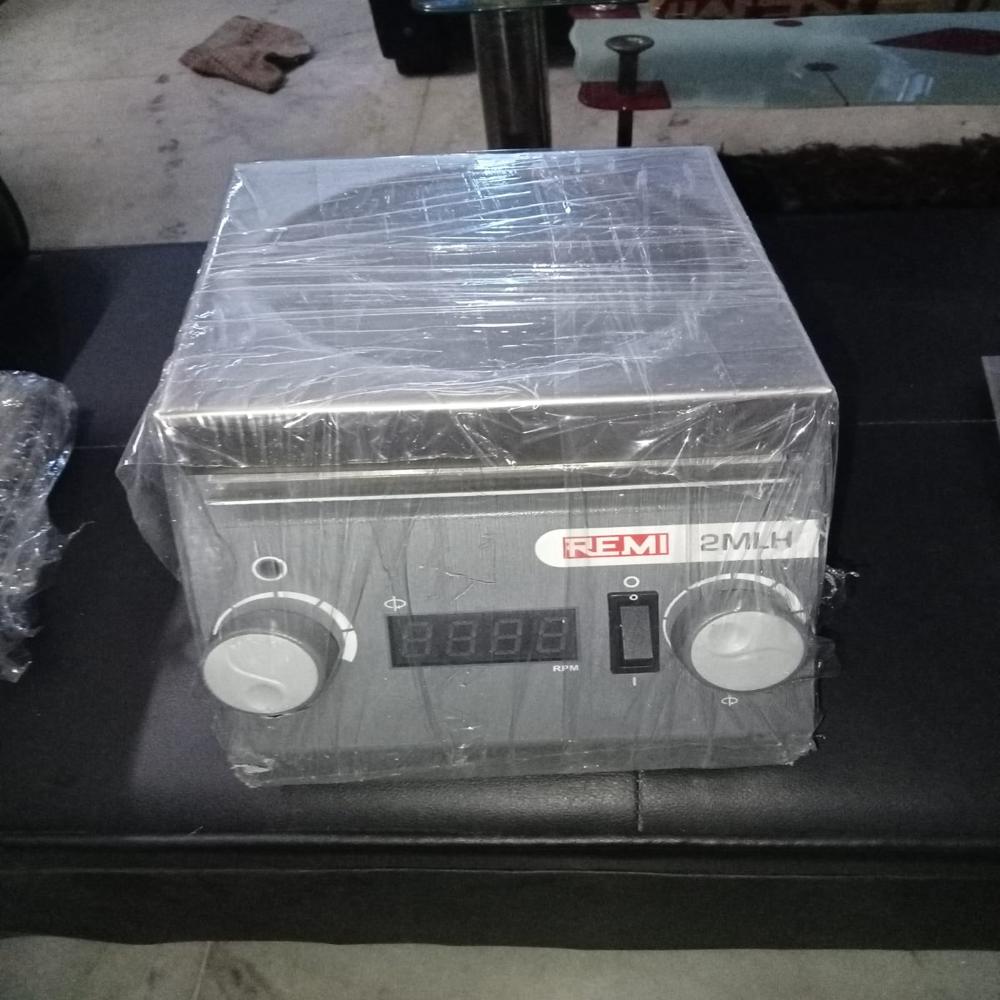

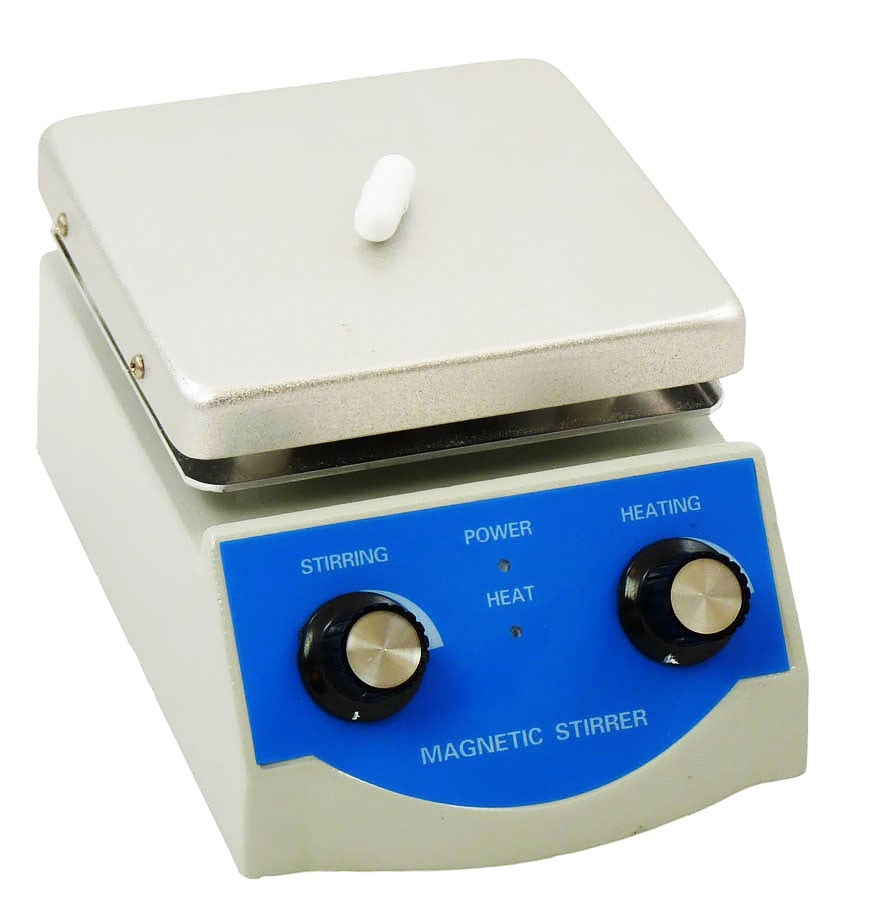

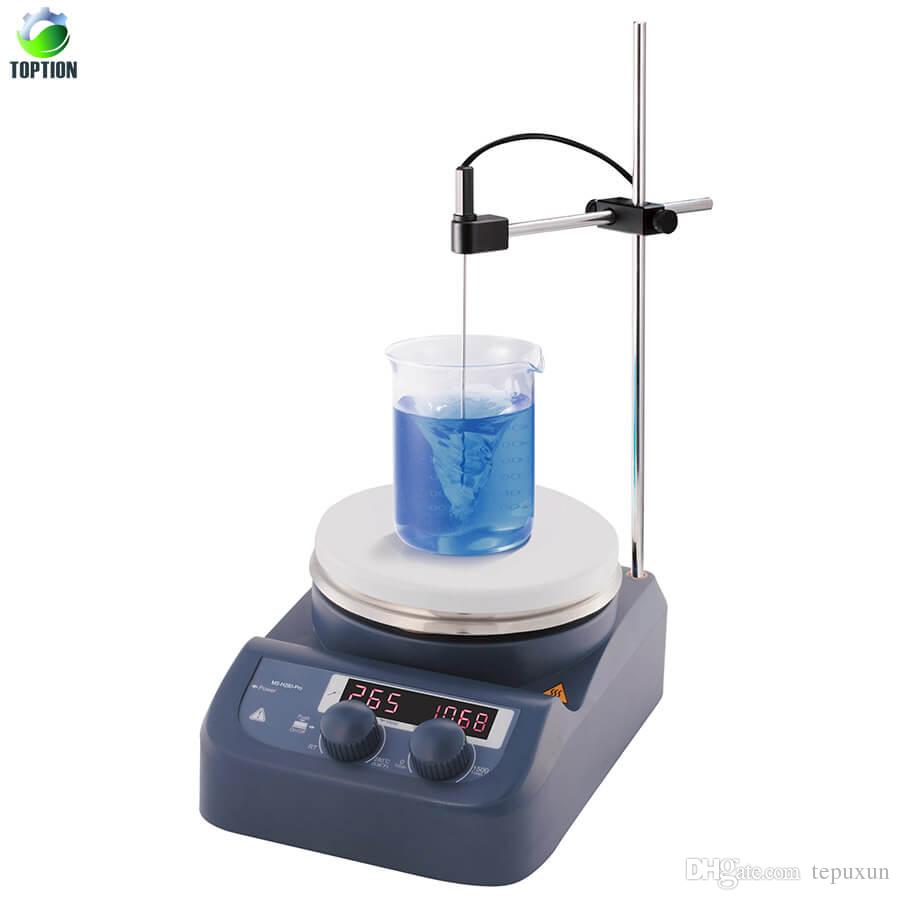

Hot Plate Magnetic Stirrer

Name: Hot Plate Magnetic Stirrer
Brand: DD BIOINFOTECH
Price: 12000.0 INR
Availability: InStock

Price 12000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Hot Plate Magnetic Stirrer Specification

Speed Range
200-2200 RPM in steps of 10/-RPM

Features
Simultaneous heating and stirring, digital display, chemical resistant, adjustable temperature and speed controls

Power Supply
AC mains

Temperature Resistance
Ambient to 340C

Display Type
LED Digital Display

Glass Type
Not Applicable, suitable for a variety of beaker types

Heating Capacity
Up to 340C

Shape
Rectangular base with round hotplate

Control Type
Digital control with independent knobs

Accuracy
1C (temperature); 1 rpm (speed)

Type
Other

Dimension (L*W*H)
Approx. 320 x 180 x 120 mm

Equipment Type
Digital Hotplate Stirrer

Equipment Materials
Chemical-resistant body, Ceramic-coated plate

Power
500W

Voltage
220V/110V, 50/60Hz

Material
Stainless steel platform; plastic/metal housing

Application
Laboratory mixing and heating applications

Capacity (Ltr)
10 Liter (L)

Stirring Motor Type
Brushless DC motor

Stirring Capacity
Up to 5 liters (H2O)

Stirring Bar
Included

Overheat Protection
Yes, integrated safety circuit

Plate Diameter
Approx. 135 mm

Mounting Rod
Included for external sensor or clamp

Temperature Control
Microprocessor PID control

Weight
Approx. 3.5 kg

Timer Function
Yes

Hot Plate Magnetic Stirrer Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
2 Week

About Hot Plate Magnetic Stirrer

Magnetic Stirrer Hot Plate is a laboratory device that combines magnetic stirring and heating functionalities in a single unit. It is widely used in chemical, biological, and pharmaceutical laboratories for mixing and heating liquid samples simultaneously.

Key Applications

Chemical Synthesis: Facilitates uniform mixing and heating of reagents during reactions.
Biological Cultures: Maintains optimal temperatures while mixing culture media.
Pharmaceutical Preparations: Ensures consistent mixing and heating of solutions.
Educational Demonstrations: Used in teaching laboratories for various experiments.

Advanced Digital Control for Precision

Equipped with microprocessor-based PID technology, this hot plate stirrer allows you to independently and precisely adjust both temperature and stirring speed. The digital LED display ensures real-time visibility of both parameters, with accuracy up to 1C and 1 RPM. This empowers users to perform complex laboratory mixing and heating applications with confidence and reproducibility.

Durable and Safe Laboratory Design

Constructed with a chemical-resistant body, ceramic-coated plate, and stainless steel platform, this unit is engineered for long-term use in harsh laboratory environments. Integrated overheat protection and a safety circuit safeguard your samples, providing additional reliability, while the timer function supports unattended operations.

FAQ's of Hot Plate Magnetic Stirrer:

Q: How do I set and monitor both the temperature and stirring speed on this hot plate magnetic stirrer?

A: You can independently set temperature and stirring speed using the dedicated digital control knobs on the front panel. The LED digital display provides clear, real-time readings for both parameters, ensuring precise adjustments and monitoring throughout your laboratory procedures.

Q: What beaker types and volumes are compatible with this hot plate magnetic stirrer?

A: The unit is designed for a wide range of beaker types, as it does not require a specific glass type. It can stir up to 5 liters of H2O and accommodates vessels with a diameter that fits the 135 mm ceramic-coated plate, making it highly adaptable for different labware.

Q: When should I use the integrated timer function during laboratory work?

A: The timer function is useful when your protocol requires controlled heating and stirring for a fixed duration. You can set the desired time, and the hotplate will automatically stop the operation once the set period is elapsed, offering convenience and more reliable results.

Q: Where can I safely operate this magnetic hot plate stirrer?

A: This device is designed for laboratory environments and other settings where chemical-resistant equipment is essential. Its durable construction and integrated overheat protection make it suitable for most labs, providing both safety and reliability during use.

Q: What safety features help protect my samples and experiments?

A: This hot plate stirrer incorporates an overheat protection system and an integrated safety circuit that automatically activate if abnormal conditions are detected, ensuring that your samples and the device itself remain protected against excessive heating or electrical faults.

Q: How does the brushless DC motor benefit daily laboratory use?

A: The brushless DC motor provides smooth, quiet, and maintenance-free operation, ensuring consistent stirring performance. Its durable design reduces wear and tear, resulting in a longer equipment lifespan and reliable mixing even during extended use.
