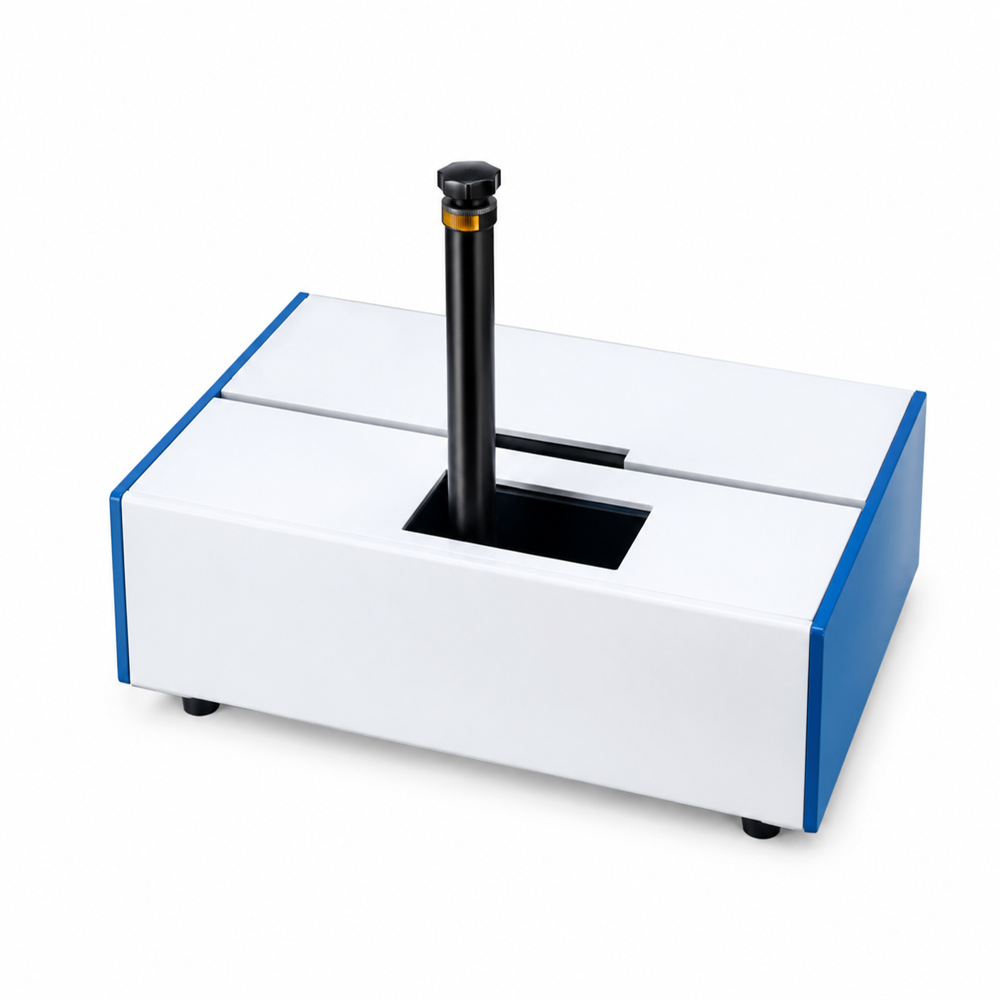

Visual Colorimeter

Name: Visual Colorimeter
Brand: DD BIOINFOTECH
Price: 150000.0 INR
Availability: InStock

Price 150000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Visual Colorimeter Specification

Shape
Rectangular base with central observation column

Glass Type
High transmittance borosilicate

Power Supply
Not required for standard model

Display Type
Visual observation window

Temperature Resistance
Up to 60C (with compatible tubes)

Features
Compact, easy to use, low maintenance, highly durable

Control Type
Manual optical comparison

Accuracy
Visual determination, dependent on color standard and user skill

Usage
Resolution: 0.1 colour scale unit

Type
Visual Colorimeter

Dimension (L*W*H)
Approx. 400 x 250 x 320 mm

Equipment Type
Bench-top laboratory instrument

Equipment Materials
Powder-coated steel body, polymer fittings

Power
Manual / No external power required (standard version)

Voltage
Not applicable / Optional for illuminated models

Material
MS body with anti-corrosive finish

Application
Analysis of color in liquids and chemical solutions

Capacity (Ltr)
Sample tube capacity up to 100 ml

Finish
Smooth, chemical-resistant surface

Observation Range
Lovibond scale, Gardner scale, or Pt-Co scale (as per standard supplied)

Leveling
Adjustable leveling feet for stable placement

Maintenance
Low, periodic cleaning only

Corrosion Resistance
High, suitable for chemical laboratories

Usage Environment
Laboratory and industrial QC

Lighting Arrangement
Inbuilt for illuminated models (optional), daylight illumination recommended

Standards Compliance
IS: 548, ISO 2211, ASTM D1209, or as required per test

Sample Throughput
Single sample at a time

Tube Support
Interchangeable tube holders for different sample volumes

Portability
Yes, desktop-friendly design

Net Weight
Approx. 4-6 kg

Accessories Supplied
Set of color standards, sample tubes, instruction manual

Visual Colorimeter Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
2 Week

About Visual Colorimeter

Visual Colorimeter is a kind of visual colour measuring instrument. It measures colour scale unit which is an international acknowledged specific colour method. It has two modes transmittance & reflectance. Range 0.1-79.9 red, 0.1-79.9 yellow, 0.1-49.9 blue, 0.1-3.9 Neutral, resolution 0.1colour scale unit, viewing system- fully adjustable Give me Discribsion

Versatile Color Analysis

This visual colorimeter accommodates a range of colorimetric standards, including Lovibond, Gardner, and Pt-Co, enabling users to perform color evaluations per IS: 548, ISO 2211, and ASTM D1209 requirements. Its interchangeable tube holders support diverse sample volumes, making it adaptable for varied analytical needs.

User-Friendly and Durable Design

Manufactured from a sturdy powder-coated steel body and fitted with high-transmittance borosilicate glass tubes, the instrument resists corrosion and chemical exposure. Its compact, desktop-friendly shape with adjustable feet ensures stability, while maintenance remains minimal with only periodic cleaning required.

Flexible Operation and Lighting Options

The colorimeter operates manually, eliminating the need for external power sources in its standard model. It can be equipped with inbuilt lighting or used under recommended daylight conditions for accurate color comparison, thus enhancing usability in different laboratory environments.

FAQ's of Visual Colorimeter:

Q: How is the color analysis process performed with this visual colorimeter?

A: Color evaluation is carried out by visually comparing the sample in the observation window against a set of certified color standards, following the selected Lovibond, Gardner, or Pt-Co scale. The device allows for manual adjustments and precise optical comparison to determine color values accurately.

Q: What types of samples can be analyzed using this instrument?

A: This visual colorimeter is ideally suited for analyzing the color of various liquid substances, including chemical solutions, oils, and other transparent or slightly colored fluids, typically in laboratory or industrial quality control settings.

Q: When is external power required for this colorimeter?

A: The standard model operates without external power. However, if you select the illuminated version, inbuilt lighting will require a power source. For most applications, daylight illumination is recommended and no power supply is necessary.

Q: Where is this instrument best utilized?

A: Designed for bench-top use, the visual colorimeter is highly effective in laboratory environments, industrial quality control rooms, and research facilities where accurate color determination of liquid samples is essential.

Q: What are the benefits of the adjustable leveling feet and interchangeable tube holders?

A: Adjustable leveling feet provide stable placement on any work surface, ensuring accurate visual readings. Interchangeable tube holders allow the use of different sample volumes up to 100 ml, increasing the instrument's flexibility for various testing requirements.

Q: How should the device be maintained over time?

A: The visual colorimeter requires minimal maintenance-periodic gentle cleaning of the observation window, sample tubes, and the outer surfaces is sufficient. Its anti-corrosive finish and high-quality materials ensure long-term durability even in chemically active environments.

Q: What accessories are supplied with the colorimeter?

A: Each unit includes a set of calibrated color standards, sample tubes made from borosilicate glass, and a detailed instruction manual to guide proper operation and care.
