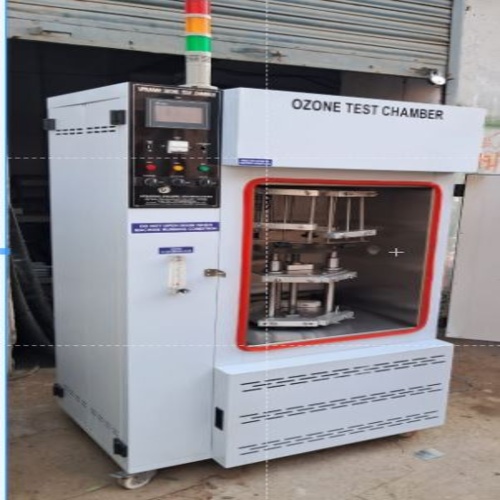

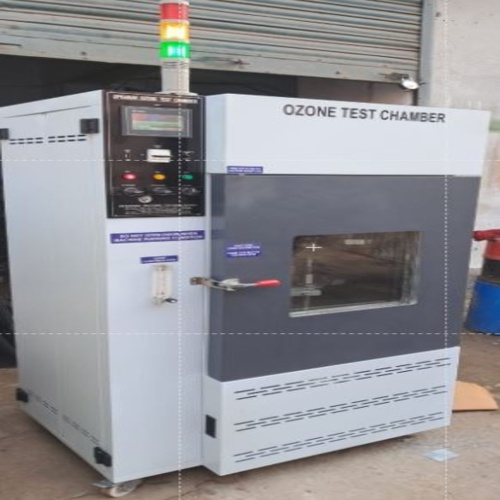

Automatic Ozone Test Chamber

Name: Automatic Ozone Test Chamber
Brand: DD BIOINFOTECH
Price: 380500.0 INR
Availability: InStock

Price 380500.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Automatic Ozone Test Chamber Specification

Control Type
Microprocessor-based PID Controller

Features
Programmable Testing Cycles, Digital Controls, Data Logging, Safety Alarms

Heating Capacity
2 KW

Speed Range
0.1 - 100 rpm (Specimen Rotation)

Temperature Resistance
-40C to +150C

Glass Type
Observation Window - Tempered Glass

Power Supply
AC 220V 10%, 50Hz / Single Phase

Accuracy
Temperature: 0.5C; Ozone Concentration: 2%

Display Type
Digital LCD Display

Shape
Rectangular

Type
Automatic Ozone Test Chamber

Dimension (L*W*H)
90 x 130 x 170 cm

Equipment Type
Ozone Test Chamber / Aging Chamber

Equipment Materials
Stainless Steel, Powder Coated Steel

Power
2200 W

Voltage
220V AC, 50/60Hz

Material
Stainless Steel Inner Chamber

Application
Ozone Aging and Resistance Testing for Rubber and Polymers

Capacity (Ltr)
500 Ltrs

Time Setting Range
1-9999 min

Data Output Interface
USB, RS232

Caster Wheels
Heavy-duty Lockable Casters for Mobility

Ozone Concentration Range
0-1000 pphm (parts per hundred million)

Observation Window Size
40 x 60 cm

Sample Holder
Multi-position Rotary Holder

Ozone Generator Type
UV Method or Corona Discharge (Optional)

Preset Program Storage
Up to 99 Custom Routines

Internal Chamber Size
50 x 60 x 70 cm

Safety Features
Over-heating protection, Over-current protection, Leakage breaker

Humidity Range
40%-98% RH

About Automatic Ozone Test Chamber

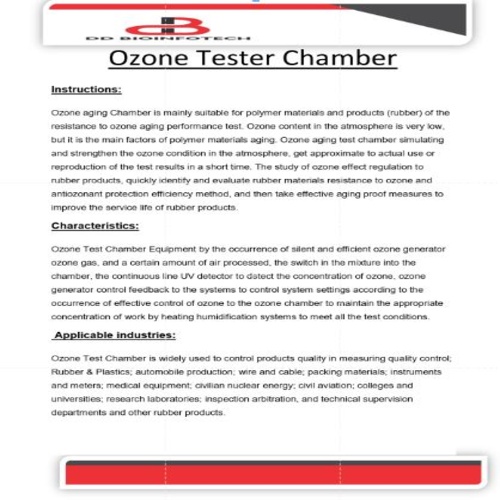

An ozone test chamber is designed to simulate ozone-rich environments to test the resistance of materials like rubber, plastics, and textiles to ozone degradation. The chamber generates ozone at specific concentrations and exposes the test samples to this controlled environment over a set period.

Ozone Concentration- 01500pphm

Power- 35KW

Temprature Resolution- 0.1 Degree

Weight- 250Kg

Advanced Ozone Testing Precision

This chamber delivers precise ozone concentration control up to 1000 pphm, facilitating accurate assessment of material durability under accelerated aging. Its rectangular, 500-liter chamber allows for testing multiple samples simultaneously, monitored through a large observation window.

Programmable Control and Data Management

The digital LCD interface enables custom programming of up to 99 test routines. Combined with USB and RS232 data output and flexible time settings, users can efficiently tailor and track test cycles, safeguard data, and meet diverse research requirements.

Robust Safety and Construction Features

Safety is prioritized with over-heating protection, over-current breakers, leakage interrupter, and mobile yet secure design thanks to heavy-duty, lockable casters. The inner chamber is made of stainless steel, ensuring resistance to corrosion and longevity in demanding lab environments.

FAQ's of Automatic Ozone Test Chamber:

Q: How do I set up and operate the Automatic Ozone Test Chamber for testing?

A: First, connect the chamber to a compatible 220V AC, 50/60Hz power supply. Place your samples on the multi-position rotary holder, configure ozone concentration, humidity, temperature, and cycle duration using the digital LCD display. Select or program your desired routine, start the test, and monitor progress through the observation window.

Q: What types of materials can be tested in this chamber?

A: The chamber is specifically designed for ozone aging and resistance testing of rubber and various polymers, evaluating their performance and durability under controlled ozone, humidity, and temperature conditions.

Q: When should I use the programmable routines function?

A: Use the programmable routines to automate repetitive testing processes, saving time and minimizing manual input. You can store up to 99 custom test programs, which is ideal for standardized or frequently repeated test sequences.

Q: Where can I view or export the test results from the chamber?

A: Test results and data logs can be accessed and exported via the chamber's USB and RS232 interfaces, allowing convenient transfer to computers or external storage for detailed analysis and record keeping.

Q: What safety features are available during operation?

A: The chamber includes over-heating and over-current protection, a leakage breaker, and alarms to ensure operator and equipment safety. Heavy-duty lockable casters also secure the chamber in place during testing.

Q: How does the sample holder enhance testing efficiency?

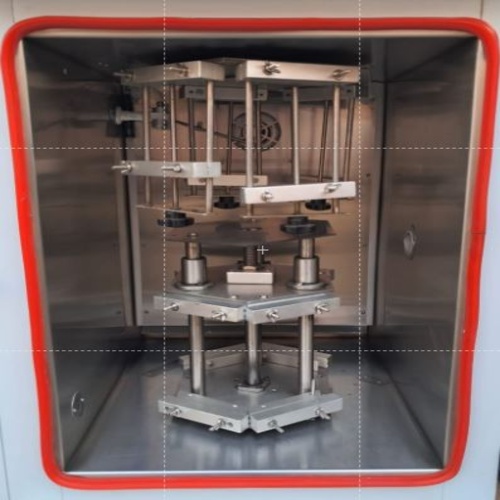

A: The multi-position rotary sample holder ensures uniform exposure of each specimen to ozone, enhancing accuracy and repeatability of test results. The rotation speed is adjustable between 0.1-100 rpm for versatile testing needs.

Q: What are the benefits of choosing this ozone test chamber for my laboratory?

A: Benefits include precise control of testing parameters, robust safety measures, durable construction materials, ample chamber capacity, advanced data management, and the flexibility to program and automate complex test cycles-making it ideal for manufacturers and researchers seeking reliable ozone resistance testing in India.
